AMI Semiconductor / ON Semiconductor STK544UC62K-E

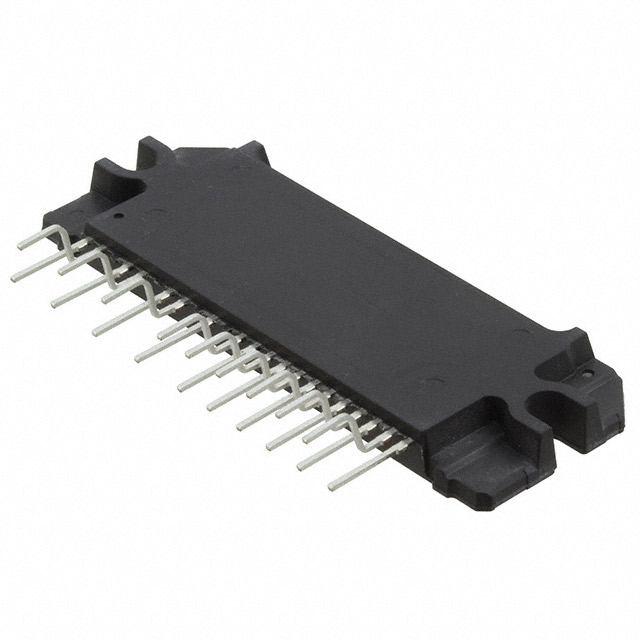

Lmages are for reference only See Product Specitications

Part Number:	STK544UC62K-E
Manufacturer:	AMI Semiconductor / ON Semiconductor
Description:	IC BRIDGE DRIVER PAR 23SIP
Category:	Integrated Circuits (ICs)
Lead Free Status / RoHS Status:	Lead free / RoHS Compliant
	Learn more about AMI Semiconductor / ON Semiconductor STK544UC62K-E
	STK544UC62K-E

Specifications

Voltage - Supply:12.5 V ~ 17.5 V
Voltage - Load:450V (Max)
Technology:IGBT
Supplier Device Package:23-SIP-1
Series:-
Rds On (Typ):-
Packaging:Tube
Package / Case:23-SIP, 19 Leads, Formed Leads
Output Configuration:Half Bridge (3)
Other Names:STK544UC62K-EOS
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Moisture Sensitivity Level (MSL):1 (Unlimited)
Manufacturer Standard Lead Time:33 Weeks
Load Type:Inductive
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Interface:Logic
Features:Bootstrap Circuit
Fault Protection:Shoot-Through, UVLO
Detailed Description:Half Bridge (3) Driver AC Motors IGBT 23-SIP-1
Current - Peak Output:20A
Current - Output / Channel:10A
Applications:AC Motors

Request Quote Now

Tips

We can supply STK544UC62K-E, use the request quote form to request STK544UC62K-E pirce and lead time.Barmumelectronics.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STK544UC62K-E.The price and lead time for STK544UC62K-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STK544UC62K-E.We look forward to working with you to establish long-term relations of cooperation,
